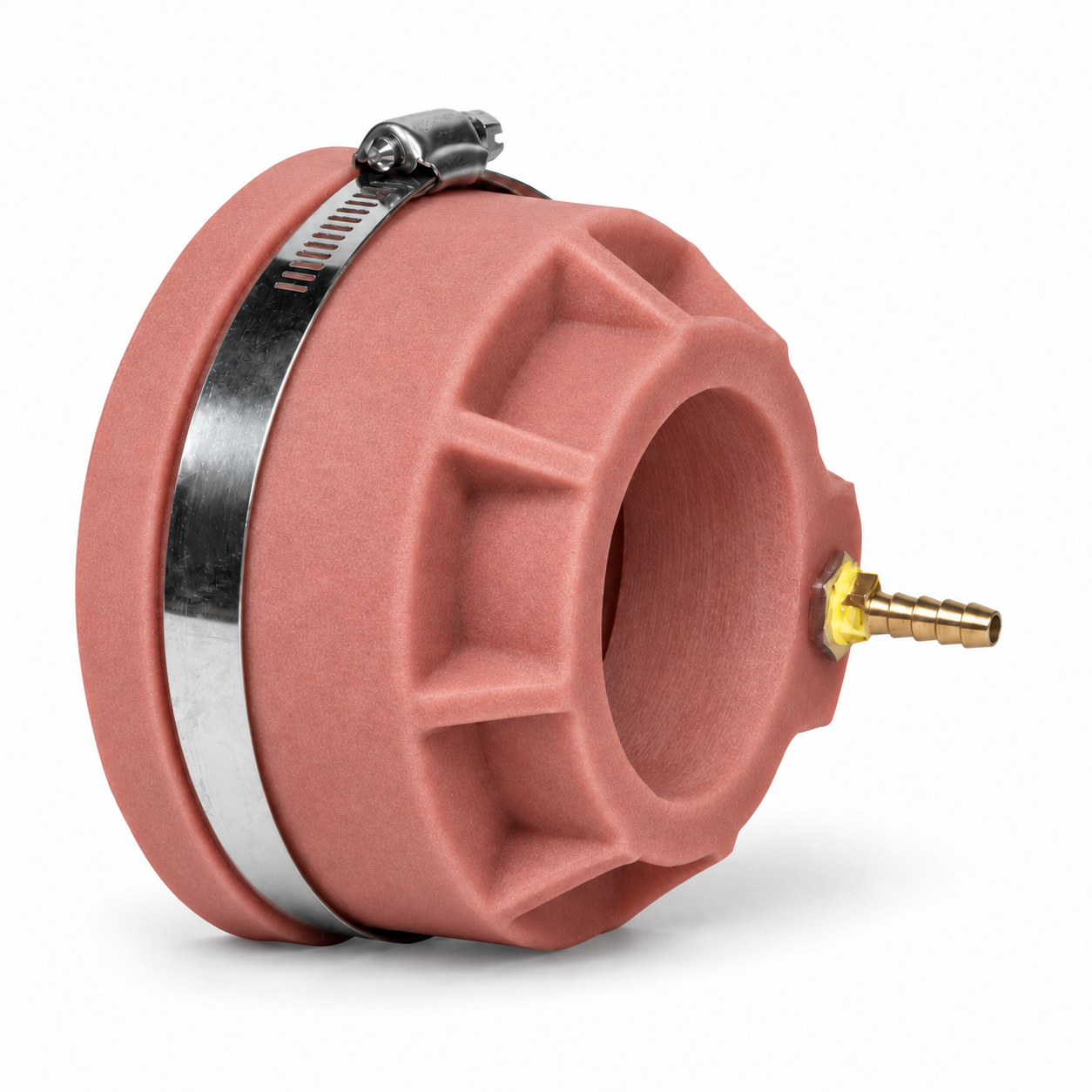

PCI STF Series Split Test Fittings provide a solution for testing secondary piping in new construction and repair applications. They can also replace damaged or deteriorated rubber test fittings.

Built from 100% fiberglass and compatible with double wall containment systems, the STF Series can remain installed after testing while leaving the secondary piping open.

Double Wall Compatible

STF Series fittings are compatible with double wall containment systems.

Secondary Piping Testing

The STF Series supports testing of secondary piping in both new installations and existing systems, with models available for RTIIA and LCX piping.

Leave-in-Place Design

STF fittings do not need to be removed after testing. Their design leaves the secondary piping open while the fitting remains installed.

New Construction and Repairs

Use STF fittings during new piping installations or when replacing damaged rubber test fittings in existing containment systems.

100% Fiberglass Construction

Corrosion-resistant fiberglass provides strength and a durable alternative to rubber test fittings, supporting long-term performance during fuel exposure, including ethanol.

Misalignment Flexibility

STF fittings accommodate angled pipe entries up to 10 degrees, providing flexibility during installation.

EP2A Epoxy Bonding

PCI’s EP2A two-part epoxy provides permanent bonding to fiberglass and steel. Its thickened consistency offers gap-filling capability and sag resistance. Follow the STF installation instructions for the required bonding surfaces and procedure.

Available Models

Configurations include:

• PF-STF-1C-32: For 3 × 2-inch RTIIA piping.
• PF-STF-1C-43: For 4 × 3-inch RTIIA piping.
• PF-STF-1C-64: For 6 × 4-inch RTIIA piping.
• PF-STF-1C-L2: For 2-inch LCX piping.
• PF-STF-1C-L3: For 3-inch LCX piping.

UL® 2447 Listed

STF Series fittings are UL® 2447 Listed for use in applicable containment installations.

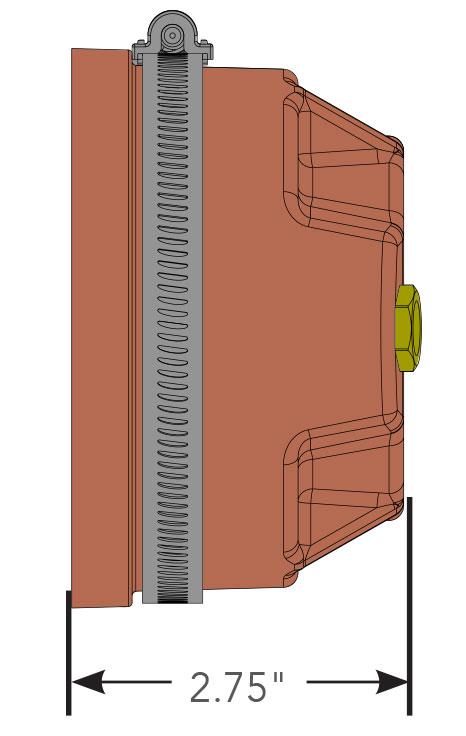

Specifications and Installation Resources

Download the product brochure and installation instructions for fitting dimensions, piping compatibility, bonding requirements, and testing procedures.

Long-Term Solution

100% fiberglass construction provides superior strength and ensures the fitting will withstand long-term exposure to all fuels, including ethanol.

Allows for Misalignment

Works with angled pipe entries up to 10° for job site adaptability allowing room for misalignment.

Cost-Effective

PCI’s penetration fittings are the most affordable fiberglass fittings on the market, with a similar cost to rubber or plastic fittings.

EP2A – Epoxy Bonding

EP2A is two-part epoxy available to bond fiberglass penetration fittings to fiberglass and steel. Due to its thickened consistency, It has great gap filling properties and excellent sag resistance, making it a simple and dependable bonding solution.

Brochure

Installation Instructions

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Florida Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
