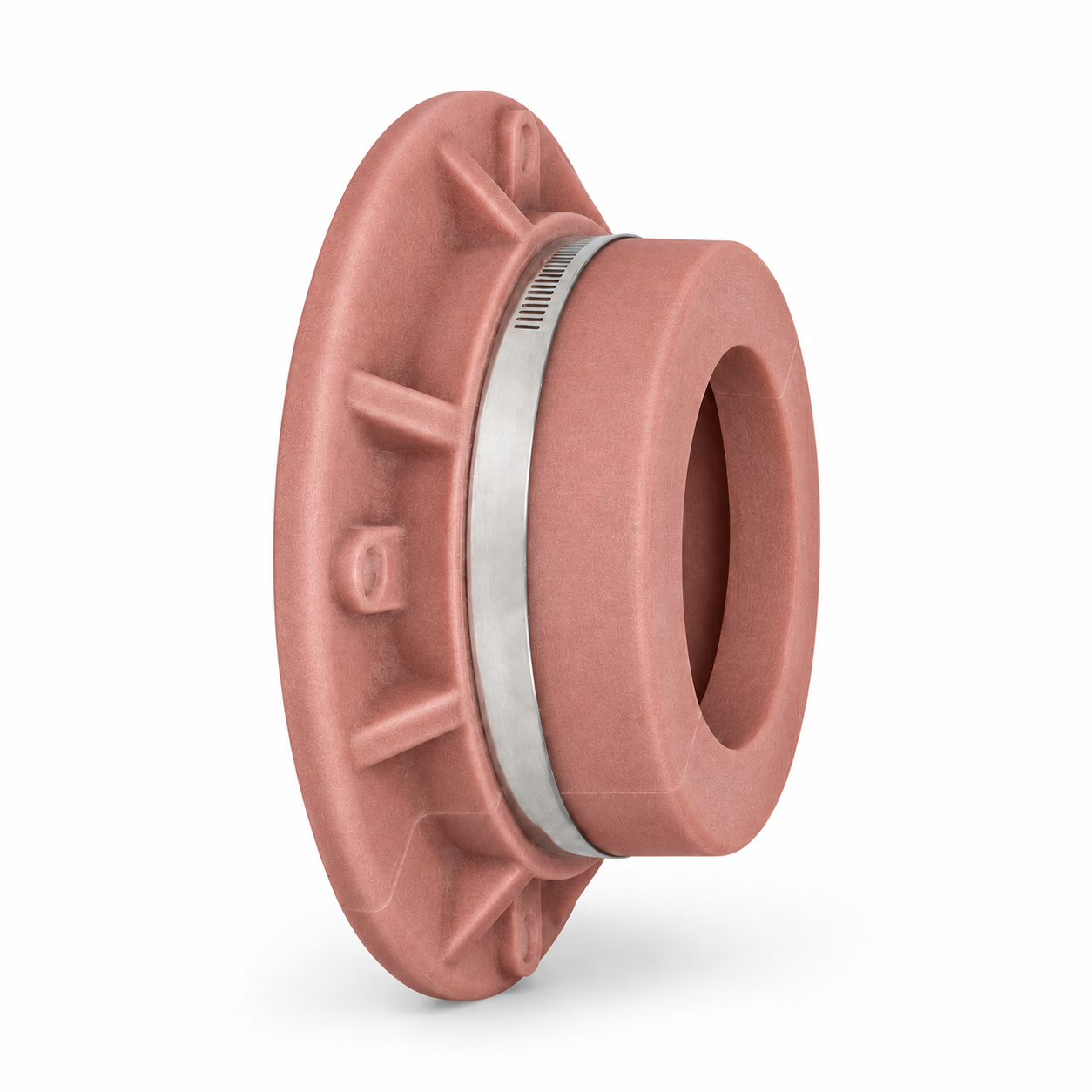

PCI BSO Series Bolt Stand Off Fittings restore watertight containment around damaged penetration fittings while allowing the existing fitting to remain in place. Used with an SRB fitting, the assembly seals to the sump wall and a clean section of pipe inside the sump.

Built from 100% fiberglass and compatible with double wall containment systems, the BSO Series provides a durable repair option for existing piping and conduit penetrations.

Double Wall Compatible

BSO Series fittings are compatible with double wall containment systems.

Leave Existing Fittings in Place

The BSO encapsulates the existing penetration fitting and seals around it, providing a repair solution without removing the damaged fitting.

Used with SRB Repair Fittings

Pair the BSO with the appropriate SRB fitting to complete a split repair around existing piping or conduit. Two BSO sizes accommodate different repair configurations.

100% Fiberglass Construction

Corrosion-resistant fiberglass provides strength and long-term durability during fuel exposure, including ethanol.

Misalignment Flexibility

BSO repair configurations accommodate angled pipe entries up to 20 degrees, providing flexibility when working around existing penetrations.

EP2A Epoxy Bonding

PCI’s EP2A two-part epoxy bonds fiberglass fittings to fiberglass and steel. Its thickened consistency provides gap-filling capability and sag resistance for a secure, permanent connection.

Available Models

Flat-wall configurations include:

• PF-BSO-1F-5022: For small-diameter flex pipe and conduit repairs, with a 5.2-inch inside diameter and 9-inch outside diameter.
• PF-BSO-1F-7022: For large-diameter flex pipe and rigid pipe repairs, with a 7.2-inch inside diameter and 11-inch outside diameter.

These dimensions describe the BSO fitting, not the compatible pipe size. Select the matching SRB fitting for the piping being repaired.

UL® 2447 Listed

BSO Series fittings are UL® 2447 Listed for use in applicable containment installations.

Specifications and Installation Resources

Download the product brochure for model dimensions and application information. Contact PCI for SRB pairing, surface preparation, and installation guidance.

Long-Term Solution

100% fiberglass construction provides superior strength and ensures the fitting will withstand long-term exposure to all fuels, including ethanol.

Allows for Misalignment

Works with angled pipe entries up to 20° for job site adaptability allowing room for misalignment.

Cost-Effective

PCI’s penetration fittings are the most affordable fiberglass fittings on the market, with a similar cost to rubber or plastic fittings.

EP2A – Epoxy Bonding

EP2A is two-part epoxy available to bond fiberglass penetration fittings to fiberglass and steel. Due to its thickened consistency, It has great gap filling properties and excellent sag resistance, making it a simple and dependable bonding solution.

Brochure

UL® Listed 2447

California Code of Regulation Title 23, Division 3, Chapter 16, Section 2631 (AB 2481/ California VPH)

State of Florida Department of Environmental Protection Approved / Registered Storage Tank System: EQ-203
